NOW with NEW cast aluminum catch pan ! Our trunk mounted fuel filler system is designed to put an end to awkward, messy and time consuming gas station visits (restroom jokes aside) and is a “direct fit” (no drilling or cutting) installation. designed to work with OE BMW fuel cap. (fuel cap not included)

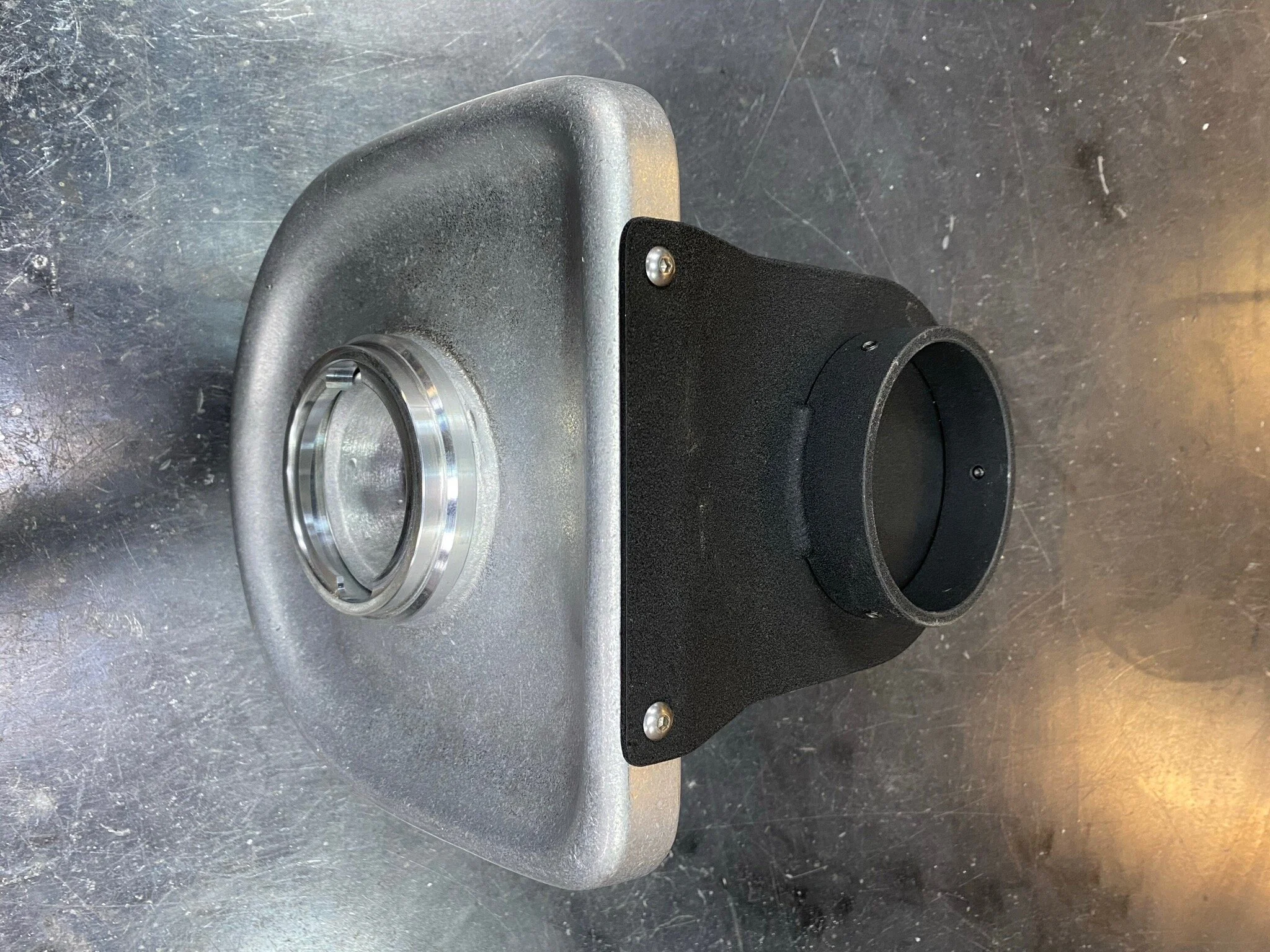

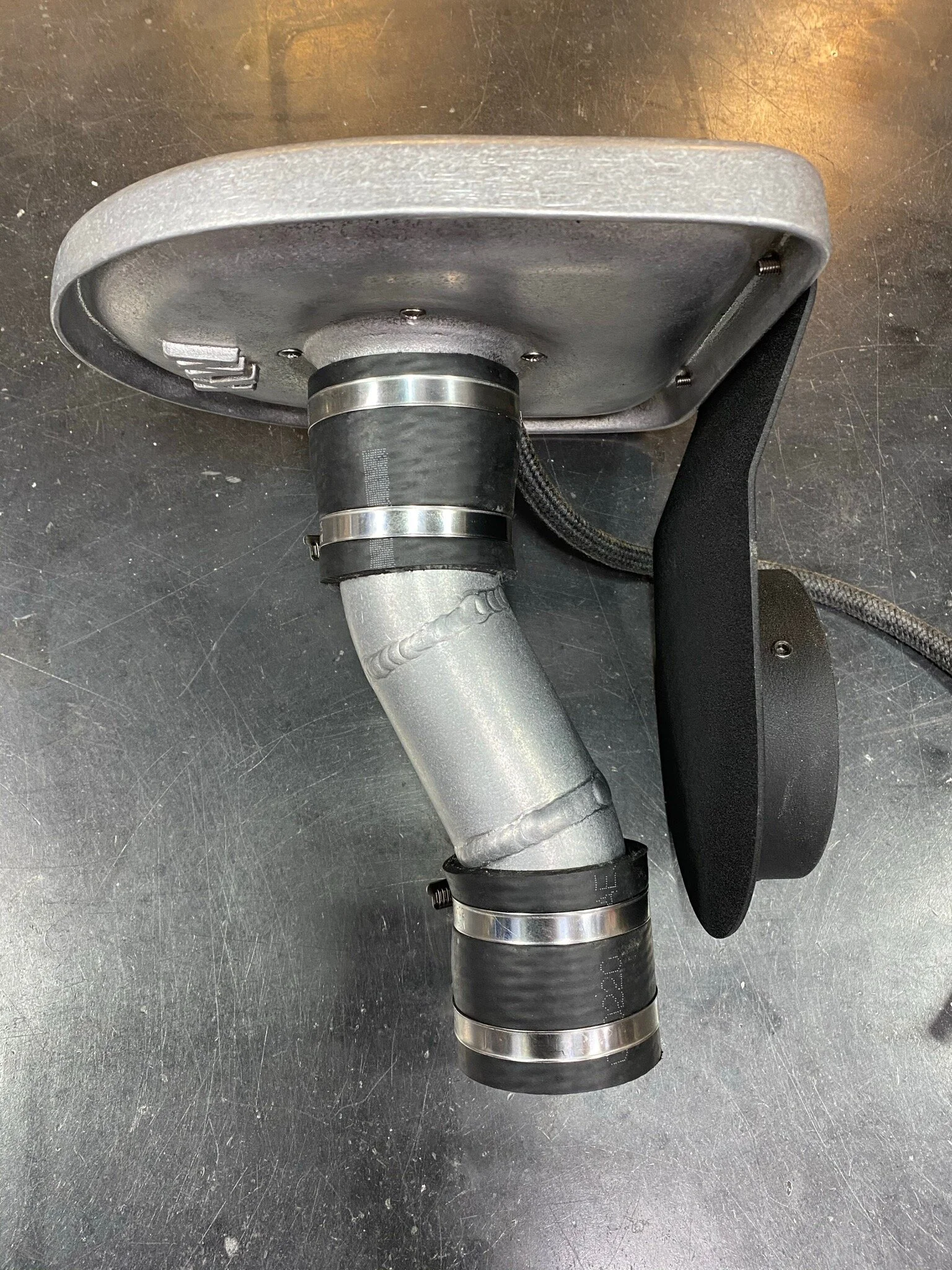

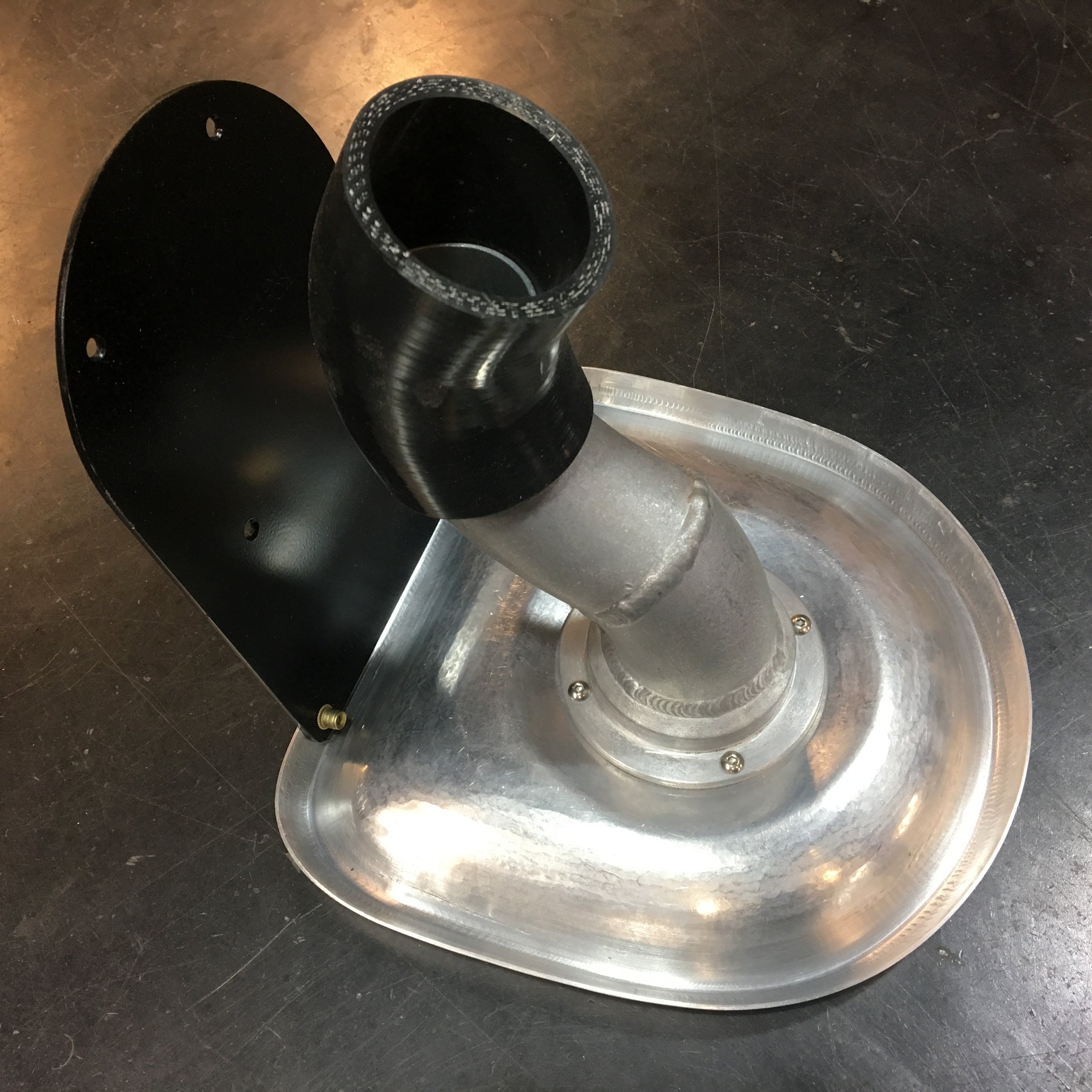

the assembly is made from CNC machined 6061 aluminum billet, mandrel bent and TIG welded 6061 tubing, cast 356a aluminum spill pan, .090 steel plate and reinforced fuel safe rubber hose. fastened with stainless metric hardware. Comes with stainless hose clamps and brass barbed fitting/vent hose to connect late model OE evap. tank, or vent to atmosphere, outside trunk. YOU MUST install vent line to avoid spliiage and fumes.

Look through all of the photos to determine what style fuel tank and quarter panel you have. early/1600 cars typically have a “short neck” fuel tank with a long 90 degree rubber connecting tube, (attached to quarter panel with hose clamp) later cars have a long 45 degree neck fuel tank with shorter 45 degree rubber tube and a four-screw flange on the quarter panel.
